How To Install A Frameless Glass Shower Door

As y'all consider shower enclosure options for your bathroom projection, please keep in mind that your surface area may need certain structural accommodations for the frameless RODA collection. While heavy 3/8-inch or 1/2-inch thick drinking glass provides a luxurious frameless design, at that place are a few key guidelines to follow to exist sure your space tin safely accommodate a RODA unit.

Installation Guidelines

Installation Guidelines for Frameless Drinking glass Doors

Instance of proper thread engagement

Our intent at Basco is to ensure that our customers have admission to products based on a variety of styles and preferences. Please refer to these guidelines for installing heavy (3/eight-inch) glass doors on fiberglass and acrylic substrates. The base and walls for any RODA unit(south) must be synthetic with the proper wood blocking prior to installation to ensure the weight of the enclosure is properly supported.

Precautionary Guidelines:

• When the U-Channel or glass clamp is screwed into the threshold, the weight of the glass sits on peak of the screws, necessitating the structural back up.
• Without proper structural support, when the panel or door is moved this could cause the screws to move slightly. Over time, this slight motility enlarges the hole the screw is in and eventually cracks (spider webs) the gelcoat or acrylic and begins to break downwards the fiberglass backing.
• Acrylic or fiberglass walls have blocking installed by the manufacturer. However, the location of that backing may not friction match the location of where the holes need to be drilled for vertical u-aqueduct, wall mount hinges, and headers.
• Without proper backing behind the walls, the door or console(s) will somewhen slip out of the thin walls.
• All structural elements of RODA doors must follow these guidelines. These elements include by are non limited to: hinges, headers, and clamps.
• Basco requires a minimum of 1-1/4" thread engagement of all fasteners into the blocking at any load bearing location. Depending on the application, the customer may be required to supply the proper fasteners to ensure adequate date.
• U-Channel may be secured into areas without blocking, excluding fiberglass and acrylic modules and/or bases, when wall plugs are used. Fiberglass and/or acrylic modules crave proper blocking in all locations, including a u-aqueduct.
• Metallic studs or strapping are not acceptable substitutes for securing load-bearing hardware.
• E'er refer to local building code. Local building code may supersede Basco'southward requirements. Basco's requirements are to be regarded as minimum requirements.

Structural Support Guidelines for Fiberglass & Acrylic Fixtures:

• A RODA door on acrylic or fiberglass requires proper backing to ensure stability.
• A unmarried 2 X four stud is needed behind the wall where the header meets the wall on top and lesser pivot units.
• A double 2 Ten 4 stud is needed behind the wall on the hinge side for wall mountain hinges.
• A double two 10 4 stud is needed at the threshold for hinge mounting and support of the weight.

HELPFUL INSTALLATION VIDEO:

View this video to picket our professional installers install our adjustable 3/8" glass & door panel installation

Structural Support Guidelines

Structural Back up Guidelines

Two ii X four studs - Choice ane

Floor-to-ceiling in line with all other studs and secured together.

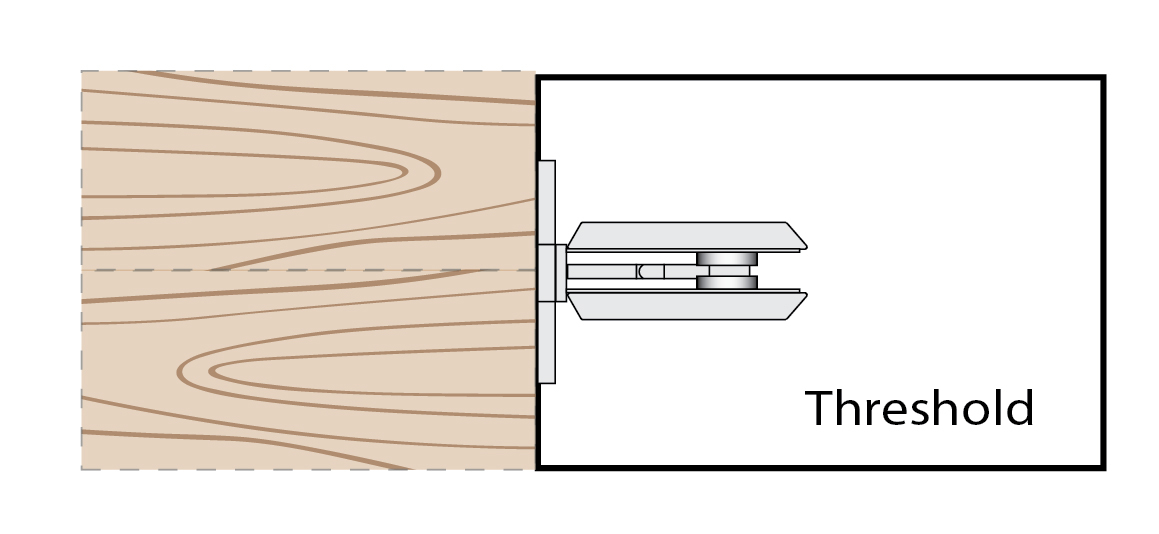

Aerial view of mounting point back up

Bathroom perspective with structural reference

Two 2 X 4 studs - Option 2

Flooring-to ceiling, 90 degrees to other studs secured together.

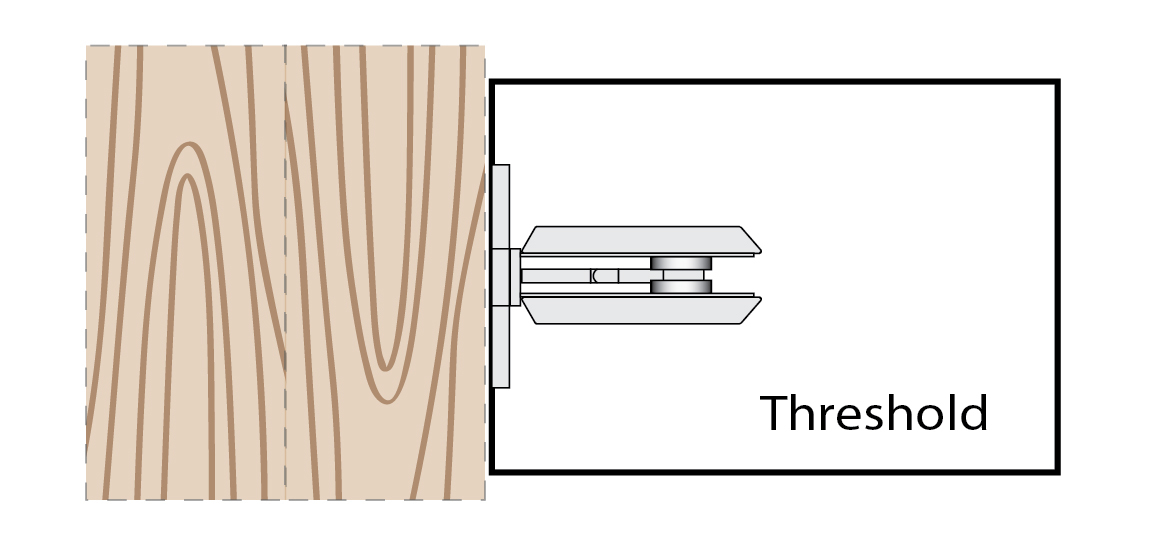

Aerial view of mounting signal back up

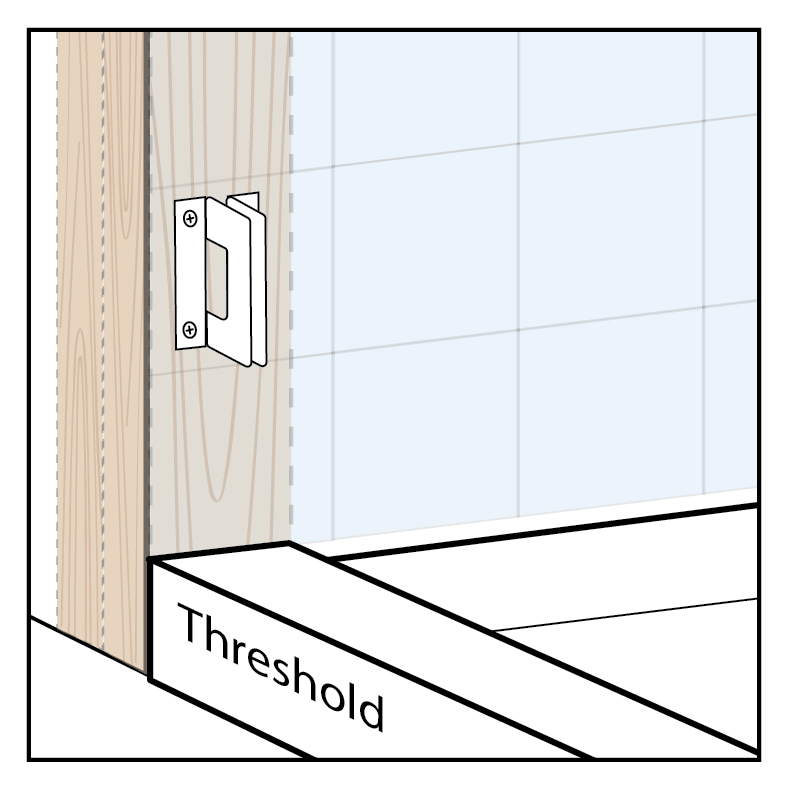

Bathroom perspective with structural reference

One ii X 6 studs - Option 3

Floor-to-ceiling, turned xc degrees to other studs.

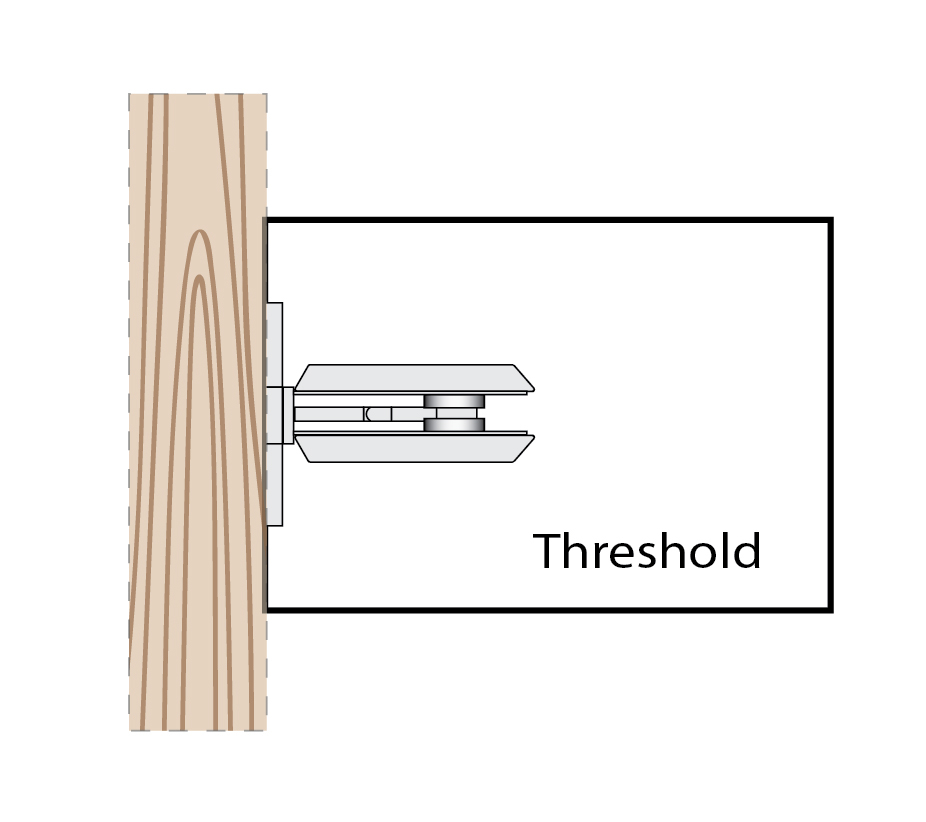

Aeriform view of mounting point support

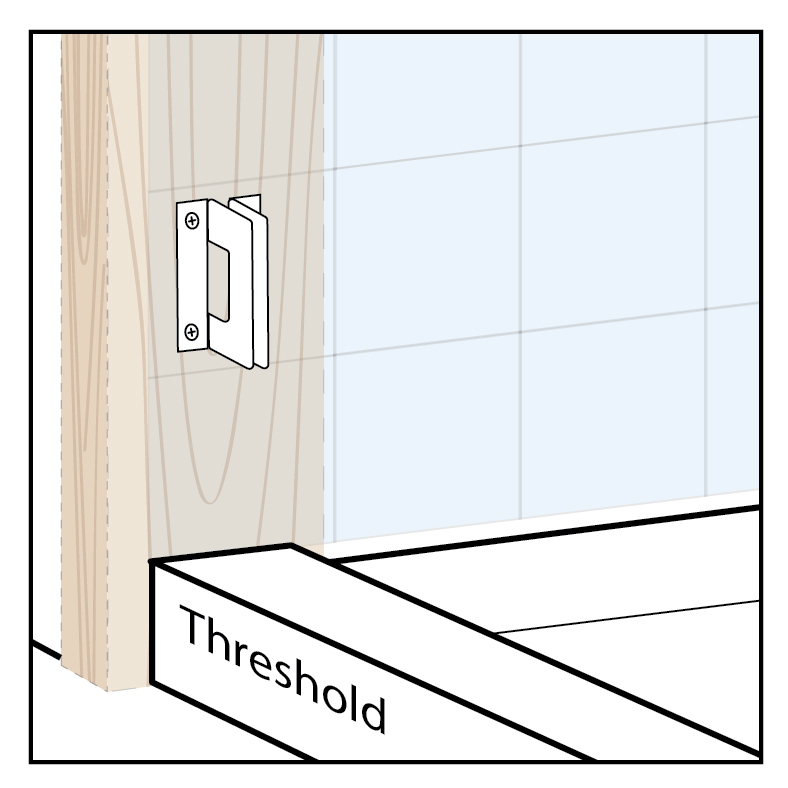

Bathroom perspective with structural reference

Horizontal blocking between vertical studs - Option 4

Attach lumber at required locations horizontally between other floor-to-ceiling studs.

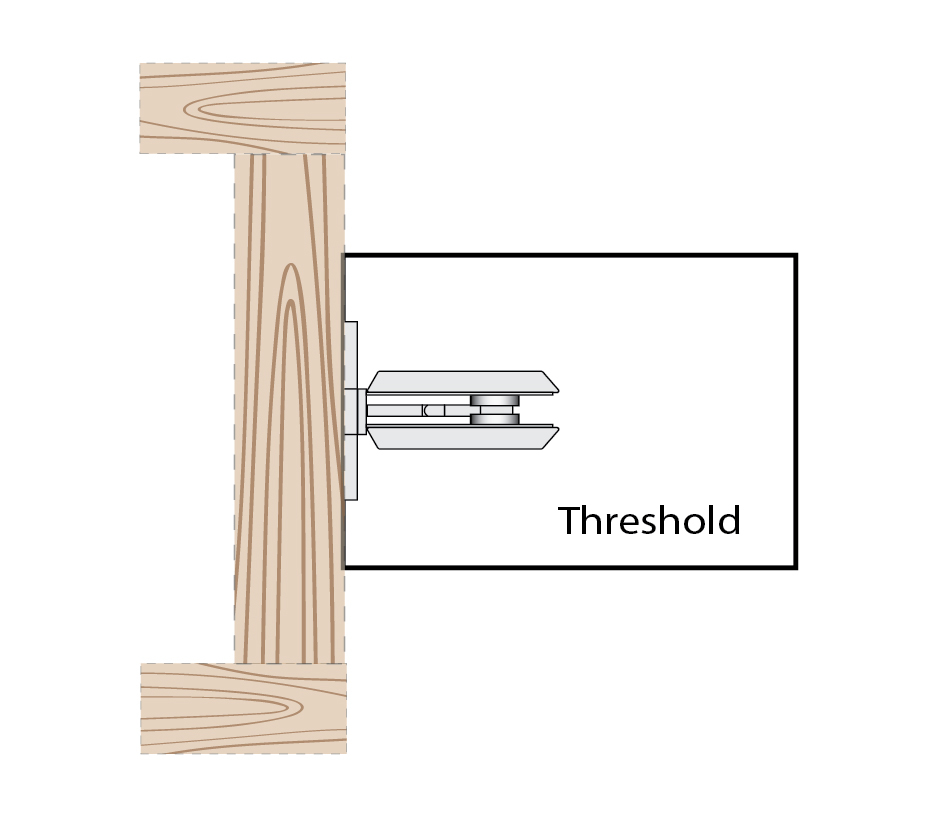

Aerial view of mounting point back up

Bathroom perspective with structural reference

Boosted RODA Product Notes:

• Products will exist produced using industry best practices and techniques for all hardware, gaps and spacing deductions, horizontal and vertical securing, etc.
• RODA enclosures are precisely manufactured with a small gap between the door and any stationary panels/walls. If no vertical channel is used there will be a small gap between the stationary panel and wall to permit for proper functioning of the unit of measurement. Because of this necessary clearance, RODA enclosures cannot be guaranteed against h2o escaping, however, gaskets are provided with all RODA enclosures to minimize leakage.
• The contractor/homeowner is responsible for ensuring proper pitch of the threshold to permit proper drainage of the water dorsum into the shower pan.
• The base and walls for any RODA unit(s) must be constructed with proper wood blocking prior to installation to ensure the weight of the enclosure is properly supported as it may upshot in product failure. At minimum, ii X 4 blocking is required at the location of any structural fellow member of the unit of measurement including, only non express to: hinges, clamps, and header brackets. All fasteners at these locations are required to exist installed into the blocking. Basco is not liable for cracks on the fiberglass or acrylic modules or product failure of any kind that results from inadequate blocking.
• Depending of the panel size and/or door hinge layout, a support bar or header may be required for proper stability.
• Floor-to-ceiling panel(s) will be manufactured to be elevator and drop when using U-Channel every bit the horizontal securing method unless noted otherwise.
• Safety tempered drinking glass cannot be cut and is resistant to breakage, merely it is susceptible to breakage if improperly handled through unequal pressure or if an unprotected border comes in contact with whatsoever solid surface. Basco is non liable for breakage afterwards installation is completed.

Curb Width Requirements

Curb Width Requirements for Rolling RODA Shower Doors

Understanding your curb width versus your flat width is important when installing sliding shower doors. Generally, 3 inches is the smallest width a curb can be. However, with conscientious measurement, the doors tin exist installed on a smaller flat width. Delight know whether the sliding shower door can fit is up to the discretion of the installer.

---

RODA SLIDER (Model Number)

MINIMUM Flat WIDTH

two-ane/4 inches

two-1/4 inches

two-xiii/xvi inches

2-thirteen/xvi inches

1-3/4 inches

2-3/sixteen inches

two-3/iv inches
